Technical Overview: Precision Slit Aluminum Strip Specifications & Performance Parameters

Precision slit aluminum strips are tightly toleranced, narrow-width aluminum coils produced by slitting master coils through high-precision rotary shear blades. In color-coated aluminum applications, these strips utilize coil coating techniques—applying thermosetting or thermoplastic coatings (such as PVDF or Polyester) over chemically pre-treated substrates (like AA3003 or AA5052). Slitting tolerances maintain width variations within $\pm0.05\text{ mm}$ to $\pm0.1\text{ mm}$ with minimal edge burr ($<5\%$ of material thickness). These precision-engineered strips deliver high dimensional uniformity, exceptional corrosion resistance, and superior formability for continuous automated roll-forming and stamping operations across building facades, electrical transformers, cable shielding, and automotive trims.

Precision Slit Aluminum Strip Technical Parameter Matrix

Core Advantages of Precision Slit Color Aluminum Strips

Dimensional Accuracy & Burr Control

Precision slitting minimizes edge camber ($<1.0\text{ mm/m}$) and burr height ($<0.015\text{ mm}$), preventing edge cracking during aggressive high-speed roll forming and deep-drawing processes.

Superior Surface Coating Integrity

Coil-coated before slitting, the material undergoes continuous degreasing, chromate-free pretreatment, and baking. This yields a uniform film thickness ($25-35\text{ }\mu\text{m}$ PVDF) with T-bend flexibility ratings down to $0-1T$ without coating delamination.

Weathering & Corrosion Protection

Utilizing fluoropolymer chemistry (70% PVDF resin content), these strips resist chalking, color fading, and chemical exposure under tropical UV exposure and severe industrial atmospheres compliant with AAMA 2605 and GB/T 5237.5 standards.

Key Industrial Applications

Architectural Building Envelope & Drainage Systems

• Rain Gutters & Downspouts: Pre-painted AA3003 precision slit strips ($0-1T$ thickness) are continuously roll-formed into seamless gutter systems, benefiting from high UV fastness and corrosion resistance.

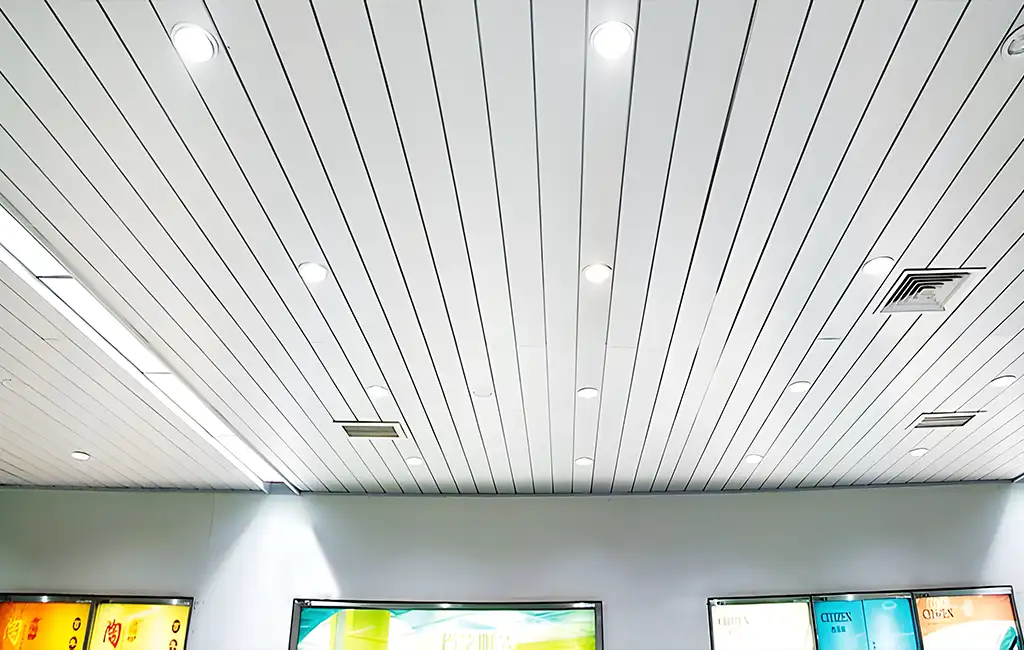

• Suspended Metal Ceilings & Linear Baffles: Narrow-width coated strips enable continuous feeding into automated bending lines without paint peeling along tight radius bends.

Electrical, Cable, & Energy Systems

• Cable Shielding & Wrapping: Ultra-thin precision slit aluminum strips ($0.15-0.3\text{ mm}$) serve as electromagnetic shielding layers in high-frequency signal cables, requiring strict width tolerances to avoid gaps during spiral wrapping.
• Transformer Windings: Precision slitting eliminates sharp edge burrs, preventing short circuits when wrapping transformer coil windings.

Automotive & Industrial Manufacturing

• Automotive Heat Shields & Trim Strips: Formable AA5052/AA6016 slit strips are used for exhaust thermal insulation and decorative exterior trim components requiring high salt-spray resistance.
