PVDF Color Coated Aluminum Coil Applications and Specifications
PVDF (Polyvinylidene Fluoride) color-coated aluminum coil is primarily used in architectural exterior envelopes, industrial roofing, and high-exposure infrastructure due to its exceptional weatherability and chemical resistance. Coated with a fluorocarbon resin containing a minimum of 70% Kynar 500 or Hylar 5000, these coils comply with AAMA 2605 standards, offering superior resistance to UV degradation, acid rain, and environmental pollutants. Utilizing structural alloys such as AA3003, AA3004, and AA5052, PVDF aluminum coils provide structural integrity and formability for curtain walls, metal roofing panels, composite panels (ACP), and fascia systems in highly corrosive marine or industrial environments.
Technical Parameter Matrix for Color-Coated Aluminum Coils
The table below outlines the engineering specifications of various color-coated aluminum coils based on alloy grade, coating system, and environmental suitability.
| Aluminum Alloy Grade | Coating Type | Coating Thickness (μm) | UV Resistance (AAMA Standard) | Salt Spray Test (Hours) | Color Retention Rate (10-Yr ΔE) | Operating Temp Range (°C) | Primary B2B Application |
| AA3003 / AA3004 | 70% PVDF (2-Coat) | 25 – 28 | AAMA 2605 | ≥ 3,000 hrs | ≤ 5.0 | -50 to +100 | Commercial Facades, Standing Seam Roofing |
| AA5052 | 70% PVDF (3-Coat) | 35 – 40 | AAMA 2605 | ≥ 4,000 hrs | ≤ 4.0 | -60 to +120 | Coastal Infrastructure, Marine Architecture |
| AA1100 / AA3003 | PE (Polyester) | 15 – 18 | AAMA 2603 | ≥ 1,000 hrs | N/A (Interior) | -30 to +80 | Indoor Ceilings, Corporate Signage |
| AA6061 | Powder Coated | 60 – 80 | AAMA 2604 | ≥ 2,000 hrs | ≤ 5.0 (5-Yr) | -50 to +90 | Heavy-Duty Window Frames, Louvers |
Core Applications of PVDF Color Coated Aluminum Coils
Architectural Curtain Walls and Building Facades
PVDF color-coated aluminum coils serve as the primary material for fabricating Aluminum Composite Panels (ACP) and solid aluminum cladding panels. The 70% fluorocarbon matrix provides an inert barrier against chemical attack in urban environments characterized by high sulfur dioxide () levels. The material maintains an optimal strength-to-weight ratio, minimizing dead load on high-rise structures while fulfilling the aesthetic and flatness requirements of modern curtain wall engineering.

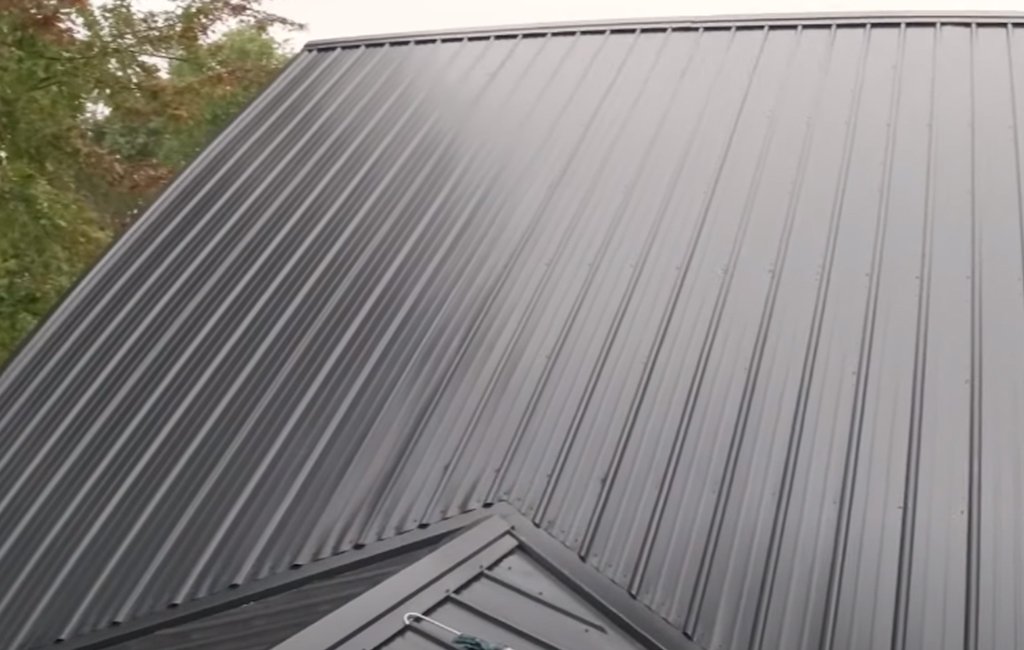

Metal Roofing and Standing Seam Systems
In industrial and commercial roofing, these coils are roll-formed into continuous standing seam panels. The structural alloys used (typically AA3004 or AA3003 in H24 temper) offer excellent yield strength to resist wind uplift forces. PVDF coatings engineered with “cool roof” infrared-reflective pigments improve thermal efficiency by maintaining a high Solar Reflectance Index (SRI), directly lowering building cooling loads.
Corporate Signage and Identity Systems
For high-exposure exterior branding and architectural signage, PVDF aluminum coils offer long-term color fastness and gloss retention. Unlike standard polyester coatings, PVDF minimizes chalking and fading under direct sunlight, ensuring that corporate color schemas remain uniform over decades of exposure.
