Optimal Embossed Aluminum Sheet Patterns for Roofing and Insulation Jacketing
For thermal insulation jacketing, the Stucco embossed pattern (often referred to as classic orange peel) is the definitive industry standard. Its multi-directional micro-textured surface increases work-hardening structural rigidity by 15% to 20% compared to mill-finish flat sheet, conceals mechanical scuffs and oil-canning, and optimizes heat dispersion while reducing specular glare. For metal roofing applications, Stucco embossed is preferred for standing seam panels to mitigate thermal expansion visibility, whereas Diamond (Checker/5-Bar) patterns are selected for heavy-duty structural roofing and walkable utility roofs requiring anti-slip traction and mechanical impact resistance.
Technical Parameter Matrix: Embossed Aluminum Patterns vs. Industrial Applications
| Pattern Type | Common Alloy & Temper | Standard Thickness (mm) | Surface Coating Options | Structural Rigidity Factor | Primary Performance Metric | Key Application Scenarios |
| Stucco (Orange Peel) | 3003-H14 / 1060-H24 | 0.4 mm – 1.0 mm (Jacketing) 0.7 mm – 1.2 mm (Roofing) | PE / PVDF / Polymetallic Moisture Barrier (PolySurlyn) | High (+18% vs. Flat) | Anti-glare, oil-canning suppression, dirt hiding | Pipe jacketing, tank cladding, standing seam roofing |
| Diamond (1-Bar / Checker) | 3003-H22 / 5052-H32 | 1.0 mm – 3.0 mm | Mill Finish / Anodized / Epoxy Primer | Very High (+30% Flexural Strength) | High mechanical impact resistance, ASTM E303 slip resistance | Utility roofing, equipment walkways, industrial roof access platforms |
| Hemispherical (3D Dimple) | 1050-O / 3003-O | 0.2 mm – 0.6 mm | Mill Finish / Heat-Resistant Protective Lacquer | Moderate (+10% Deep Drawability) | Acoustic attenuation, thermal radiation dispersion | Exhaust heat shielding, reflective insulation jacketing |
| Classic Corrugated / Trapezoidal | 3003-H16 / 3105-H24 | 0.5 mm – 1.0 mm | PVDF Coating (25–30 μm) | Extreme (Directional Bending Resistance) | Rapid water drainage, high snow-load capacity | Industrial plant roofing, agricultural building envelopes |
Deep Dive: Pattern Engineering for Building Envelopes and Insulation
Stucco Embossed Pattern: The Standard for Thermal Insulation Jacketing
Stucco embossing alters the grain structure of 3003-H14 or 1060-H24 aluminum coils through high-pressure mechanical rollers. This process cold-works the metal, significantly raising yield strength while reducing reflective glare from direct sunlight—a mandatory safety feature for field personnel during large-scale refinery or power plant installation.
- Oil-Canning Elimination: The multi-directional micro-pattern distributes internal material stresses evenly across the sheet, preventing visual wave distortion (“oil-canning”) caused by thermal expansion and contraction cycles.
- Moisture Protection (CUI Prevention): Combined with an internal PolySurlyn Moisture Barrier (PSMB), Stucco embossed jacketing prevents water ingress into insulation materials (e.g., mineral wool, cellular glass), resisting severe pitting corrosion under ASTM G48 test conditions.
- Coating Durability: Color-coated Stucco sheets with Polyester (PE) or Polyvinylidene Fluoride (PVDF) finishes show enhanced resistance to mechanical abrasion during field handling compared to smooth mill-finish sheets.

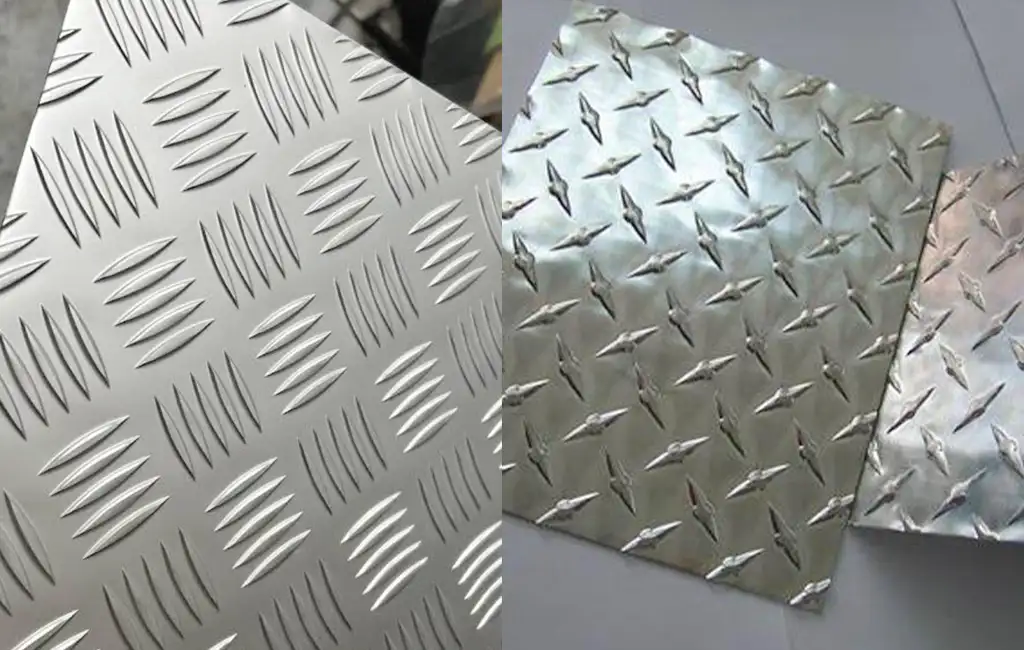

Diamond and Multi-Bar Patterns: High-Traction Structural Roofing Solutions
For industrial roofing zones that must endure severe weather or foot traffic, Diamond (Checker) and 5-Bar embossed aluminum patterns offer high sectional moduli and surface friction parameters.
- Mechanical Resilience: Engineered primarily with 5052-H32 aluminum-magnesium alloys, these raised patterns dramatically increase impact resistance against hail damage and falling debris.
- Safety and Slip Resistance: The raised diamond grid provides multi-directional friction compliance with international industrial safety standards, making it the material of choice for roof maintenance walkways, access hatches, and drainage troughs.
- Drainage Optimization: When applied in low-pitch roofing configurations, directional bar patterns prevent water pooling by guiding surface runoff along designated channels, reducing long-term joint leakage risks.

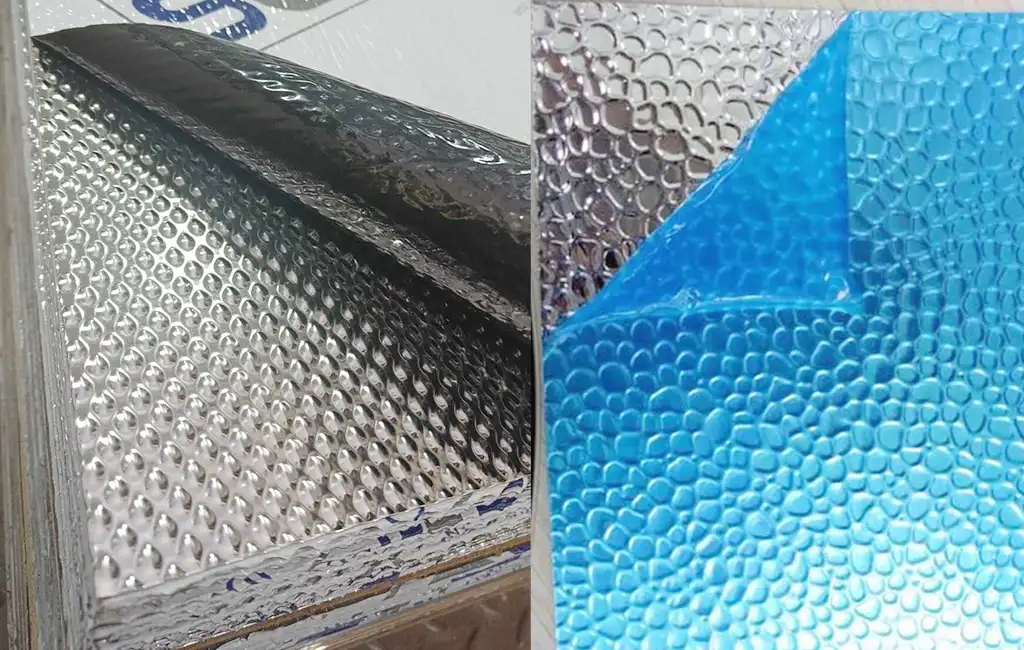

Hemispherical (3D Dimpled) Embossed Sheets: Radiative Heat & Acoustic Control
Hemispherical embossed aluminum features repeating spherical indentations that maximize total surface area without altering overall sheet dimensions.
- Thermal Radiation Control: The spherical surface geometry diffuses radiant heat waves outward rather than reflecting them in a single line, reducing localized thermal hotspots in high-temperature piping systems and HVAC ducting.
- Acoustic Attenuation: The multi-faceted surface breaks up coherent sound wave fronts, attenuating low-to-mid frequency airborne noise generated by fluid velocity changes within industrial insulation systems.
