Ocean transit exposes color-coated aluminum coils to severe humidity cycles, temperature fluctuations, and airborne chlorides, driving capillary condensation between coil wraps. Preventing coil-core corrosion requires controlling relative humidity (RH) inside the package below 40%, applying high-performance pre-treatments, and maintaining rigid physical barrier protocols. Utilizing 3000-series (3003/3105) or 5000-series (5052) aluminum alloys pre-treated with chromate or non-chromate conversion coatings, paired with 25–30 μm PVDF topcoats, effectively blocks moisture ingress. Combining Vapor Corrosion Inhibitor (VCI) film wraps, calcium chloride desiccants, and sealed steel outer sleeves isolates the metal, preventing crevice corrosion and paint delamination during transit.
Technical Specifications & Protective Parameter Matrix
| Parameter | 3003-H14 / 3105-H24 (Architectural Grade) | 5052-H32 (Marine / High-Corrosion Grade) | Testing / Verification Standard |
| Alloy Composition | Al-Mn (1.0–1.5% Mn) | Al-Mg (2.2–2.8% Mg) | ASTM B209 [1] / EN 485 |
| Coating Type & System | 2-Coat PVDF (Fluorocarbon) | 3-Coat PVDF or High-Durable Polyester (HDP) | AAMA 2605 / ISO 12206 |
| Coating Thickness | Primer: 5–8 μm; Topcoat: 20–22 μm (Total: 25–30 μm) | Primer: 5–8 μm; Topcoat: 20–22 μm; Clearcoat: 10–15 μm (Total: 35–45 μm) | ECCA T1 / NCCA I-1 |
| Salt Spray Resistance (NSS) | ≥ 1,000 Hours (No blistering, creepage < 2 mm) | ≥ 1,500 Hours (Scribe creepage < 1 mm) | ASTM B117 [2] / ISO 9227 |
| Humidity Resistance | ≥ 1,500 Hours at 100% RH (40°C) | ≥ 2,000 Hours at 100% RH (40°C) | ASTM D2247 / ISO 6270 |
| Operating Temperature | -40°C to +80°C | -50°C to +100°C | Standard Thermal Testing |
| VCI Film Requirement | Polyethylene film with active VCI additives (≥ 100 μm) | Heavy-duty woven polyethylene + VCI film (≥ 150 μm) | MIL-PRF-22019 E |
| Desiccant Loading | 500g–1000g Calcium Chloride per coil | 1000g–2000g High-Absorption Desiccant per coil | DIN 55473 [3] |
Pre-Treatment and Coating Resistance Strategies
Proper chemical pre-treatment and paint system selection are the primary defense against moisture degradation:
- Pre-treatment Process: Before painting, coils undergo multi-stage cleaning, degreasing, and application of a titanium/zirconium or chromate conversion coating [4]. This step creates an insoluble chemical bond that halts corrosion creep under the paint film.
- Primer Selection: A 5–8 μm high-density epoxy primer containing active anti-corrosion inhibitors acts as a primary barrier against moisture penetration.
- Fluorocarbon Topcoat: Applying a Polyvinylidene Fluoride (PVDF) topcoat compliant with AAMA 2605 ensures superior chemical inertness, high UV resistance, and low surface energy, preventing moisture accumulation on the painted surface.
B2B Applications and Storage Guidelines
Color-coated aluminum coils processed under these packaging and preservation standards serve high-specification exterior applications:
- Architectural Curtain Walls & Commercial Facades: Utilizing 3003-H14 PVDF-coated aluminum for severe exterior weatherability and color retention.
- Corrosive Marine & Industrial Roofing: Deploying 5002/5052-H32 HDP or PVDF coil stock in oceanfront and industrial processing zones.
- Transportation & Freight Container Panels: Engineered to withstand structural flex, dynamic temperature shifts, and salt spray exposure [2].
Warehouse Handling and Unpacking Protocol
- Thermal Acclimation: Keep sealed coils inside their export packaging for 24 to 48 hours upon arrival at destination warehouses to allow temperature equalization and avoid immediate surface condensation.

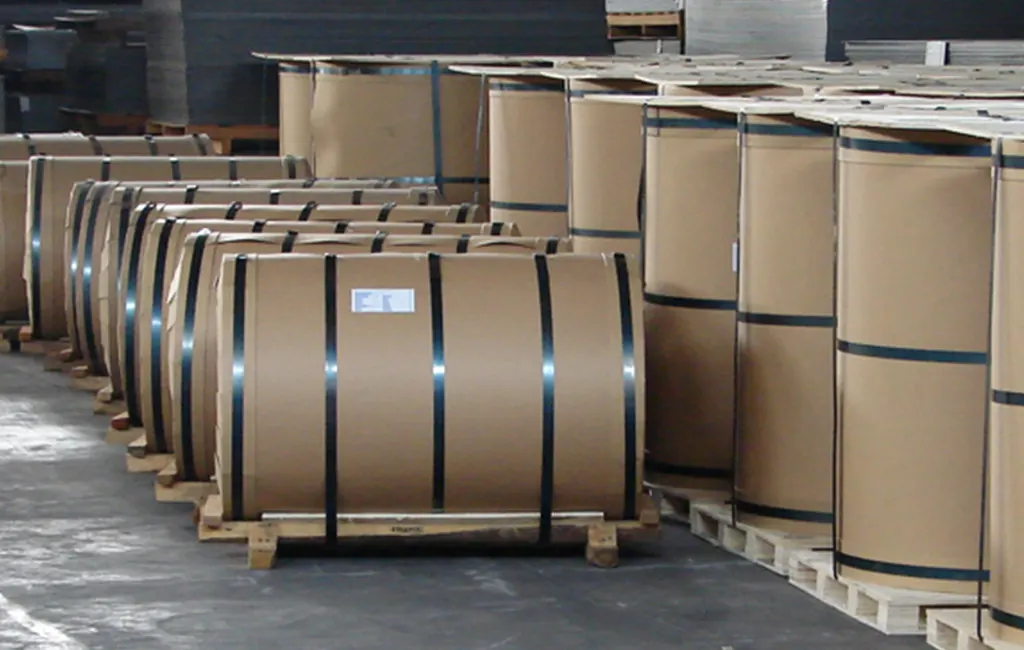

- Climate-Controlled Storage: Store coils indoors on rubber saddles or wooden skids in a well-ventilated space with relative humidity kept below 60%.
- Inspection Procedure: Perform immediate physical checks on VCI wrap integrity upon discharge; replace compromised packaging or saturated desiccant packs right away.
