Performance Requirements for Roofing Color Aluminum Coil
Roofing color aluminum coil must meet stringent mechanical, chemical, and environmental performance benchmarks to ensure structural integrity and aesthetic longevity. The core requirements include high corrosion resistance (withstanding salt spray tests ≥ 1,000 hours), excellent weatherability (utilizing PVDF coatings complying with AAMA 2605), and specific mechanical metrics like optimal yield strength and T-bend flexibility (≤ 2T without cracking) to endure roll-forming processes. Selecting the correct alloy grade—typically AA3003, AA3004, or AA5052—combined with controlled coating thicknesses (≥ 25μm for topcoats) directly determines the roof’s lifespan under severe UV exposure and thermal stress.
Technical Parameter Matrix for Roofing Aluminum Coils
The following matrix outlines the standardized technical specifications required for color-coated aluminum coils based on distinct architectural applications and environmental classifications:
| Parameter | Industrial Roofing (Aggressive/Marine) | Commercial Facades & Roofing | Residential Standing Seam |
| Aluminum Alloy Grade | AA5052 (Al-Mg series) | AA3004 / AA3003 (Al-Mn series) | AA1100 / AA3105 |
| Temper Designation | H24 / H34 (Half Hard) | H24 (Half Hard) | H14 / H24 |
| Coating Technology | PVDF (70% Kynar 500) | PVDF / High-Durability Polyester (HDP) | Polyester (PE) / HDP |
| Coating Thickness (Topcoat) | 25μm – 35μm (2 or 3-coat system) | 20μm – 25μm | 15μm – 20μm |
| Salt Spray Resistance (ISO 9227) | ≥ 1,500 Hours | ≥ 1,000 Hours | ≥ 500 Hours |
| UV Resistance Rating (Qualicoat) | Class 4 (Extreme UV resistance) | Class 3 / Category RUV4 | Category RUV3 |
| Specular Gloss (60°) | 25% – 35% (Low Gloss / Matt) | 30% – 40% | 30% – 60% |
| T-Bend Flexibility (ASTM D4145) | ≤ 2T; no cracking or peeling | ≤ 2T | ≤ 3T |
| Thermal Stability Range | -40°C to +120°C | -40°C to +80°C | -30°C to +80°C |
Modular Technical Breakdown

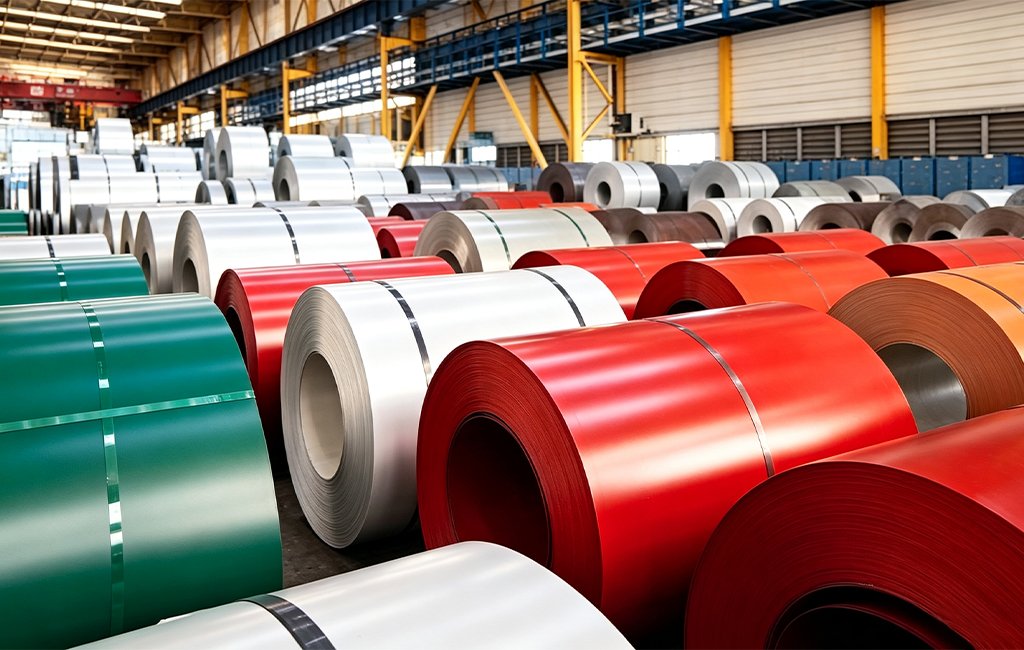

PVDF vs. HDP Coating Performance on Roofing Substrates
The choice of chemical coating determines the operating lifespan of metal roofing systems. Polyvinylidene Fluoride (PVDF) coatings, particularly those formulated with 70% Kynar 500 or Hylar 5000 resins, meet the requirements of AAMA 2605. The carbon-fluorine chemical bond within PVDF provides inertness against chemical attacks, acid rain, and solar radiation.
For intermediate microclimates, High-Durability Polyester (HDP) coatings offer a cost-effective alternative, delivering higher scratch resistance due to a harder thermoset matrix, though lacking the ultimate UV gloss retention of fluoropolymer finishes over a 20-year horizon.
Substrate Metallurgy: Why AA3004 and AA5052 Dominate Roofing
The mechanical demands of architectural roofing rule out standard utility aluminum alloys. Alloy 3004 contains manganese (Mn 1.0–1.5%) and magnesium (Mg 0.8–1.3%), which increase tensile strength while retaining structural ductility. This profile allows complex geometric profiles, like standing seam pans, to be formed without stress cracking.
For high-salinity marine or coastal zones within 1 km of the shoreline, Alloy 5052 is preferred. Its higher magnesium content (Mg 2.2–2.8%) forms a self-healing passivating oxide layer that limits pitting corrosion under continuous chloride exposure.
Micro-Pretreatment and Adhesion Integrity
Long-term coating durability relies heavily on the Pre-treatment Process. Before entering the coil coating line, the raw aluminum substrate undergoes multi-stage alkaline degreasing followed by a conversion coating process (such as Chromating or advanced Zirconium-based Chrome-Free Pre-treatment). This chemical alteration transforms the metallic surface into a non-reactive, microscopic crystalline layer. This layer prevents filiform corrosion beneath the paint film and maximizes the chemical bond between the primer coat and the underlying alloy substrate.
